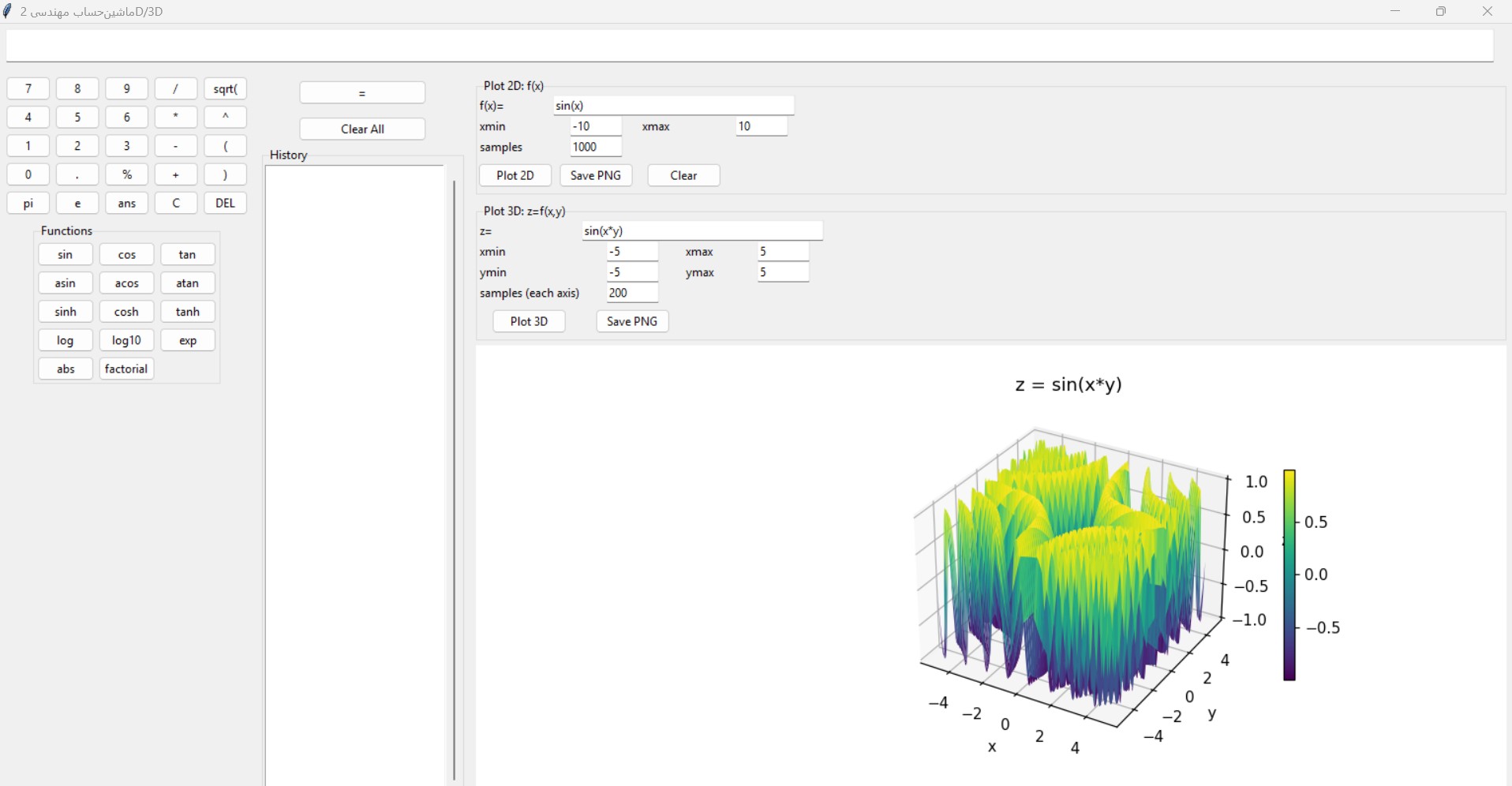

ماشین حساب مهندسی پیشرفته با رسم نمودار دوبعدی و سه بعدی

#خب اولین کارمون رایگان در اختیار شما
# scientific_calculator_3d.py
"""
ماشینحساب مهندسی با رسم 2D و 3D (z = f(x,y))
- امنسازی eval با توابع math و numpy محدود
- رسم دوبعدی f(x) و رسم سهبعدی z=f(x,y) با matplotlib (Axes3D)
"""

import tkinter as tk
from tkinter import ttk, filedialog, messagebox
import math
import numpy as np
import matplotlib
matplotlib.use("TkAgg")
from matplotlib.figure import Figure
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
from mpl_toolkits.mplot3d import Axes3D  # noqa: F401
import sympy as sp
import traceback

# --- امنسازی محیط eval ---
_safe_dict = {}
for name in dir(math):
    if not name.startswith("_"):
        _safe_dict[name] = getattr(math, name)
# allowed numpy functions (limited)
_np_allowed = ["sin", "cos", "tan", "arcsin", "arccos", "arctan",
               "sinh", "cosh", "tanh", "exp", "log", "log10",
               "sqrt", "abs", "pi", "e", "sin", "cos"]
for name in _np_allowed:
    if hasattr(np, name):
        _safe_dict["np_"+name] = getattr(np, name)

def safe_eval(expr, local_vars=None):
    if local_vars is None:
        local_vars = {}
    expr = expr.replace("^", "**")
    env = dict(_safe_dict)
    # expose math names directly
    for name in dir(math):
        if not name.startswith("_"):
            env[name] = getattr(math, name)
    # limited numpy as dict under 'np'
    limited_np = {}
    for name in set(_np_allowed):
        if hasattr(np, name):
            limited_np[name] = getattr(np, name)
    limited_np["pi"] = np.pi
    limited_np["e"] = np.e
    env["np"] = limited_np
    env.update(local_vars)
    env["__builtins__"] = {}
    return eval(expr, env)

# --- GUI ---
class ScientificCalculator3D(tk.Tk):
    def __init__(self):
        super().__init__()
        self.title("ماشینحساب مهندسی 2D/3D")
        self.geometry("1200x780")
        self.resizable(True, True)

        self.expr_var = tk.StringVar()
        self.result_var = tk.StringVar()
        self.plot_expr = tk.StringVar(value="sin(x)")
        self.plot3_expr = tk.StringVar(value="sin(x*y)")
        self.history = []

        self._build_ui()

    def _build_ui(self):
        top = ttk.Frame(self)
        top.pack(side="top", fill="x", padx=8, pady=6)
        entry = ttk.Entry(top, textvariable=self.expr_var, font=("Consolas", 18))
        entry.pack(side="left", fill="x", expand=True, padx=(0,6))
        entry.bind("<Return>", lambda e: self.evaluate())
        ttk.Label(top, textvariable=self.result_var, font=("Consolas", 14)).pack(side="right")

        main = ttk.Frame(self)
        main.pack(fill="both", expand=True)

        left = ttk.Frame(main)
        left.pack(side="left", fill="y", padx=6, pady=6)

        btns = [
            ["7","8","9","/","sqrt("],
            ["4","5","6","*","^"],
            ["1","2","3","-","("],
            ["0",".","%","+",")"],
            ["pi","e","ans","C","DEL"]
        ]
        for r,row in enumerate(btns):
            rf = ttk.Frame(left); rf.pack(pady=2)
            for txt in row:
                ttk.Button(rf, text=txt, width=6, command=lambda t=txt: self.on_button(t)).pack(side="left", padx=2)

        func_frame = ttk.LabelFrame(left, text="Functions")
        func_frame.pack(pady=6)
        funcs = ["sin(","cos(","tan(","asin(","acos(","atan(","sinh(","cosh(","tanh(","log(","log10(","exp(","abs(","factorial("]
        for i,fn in enumerate(funcs):
            ttk.Button(func_frame, text=fn.rstrip("("), width=8, command=lambda f=fn: self.on_button(f)).grid(row=i//3, column=i%3, padx=2, pady=2)

        mid = ttk.Frame(main)
        mid.pack(side="left", fill="y", padx=6, pady=6)
        ttk.Button(mid, text="=", width=20, command=self.evaluate).pack(pady=6)
        ttk.Button(mid, text="Clear All", width=20, command=self.clear_all).pack(pady=6)
        hist_frame = ttk.LabelFrame(mid, text="History")
        hist_frame.pack(fill="both", expand=True)
        self.hist_list = tk.Listbox(hist_frame, height=12, width=30)
        self.hist_list.pack(side="left", fill="both", expand=True)
        ttk.Scrollbar(hist_frame, orient="vertical", command=self.hist_list.yview).pack(side="right", fill="y")
        self.hist_list.config(yscrollcommand=lambda *args: None)
        self.hist_list.bind("<Double-Button-1>", self.on_history_select)

        right = ttk.Frame(main)
        right.pack(side="right", fill="both", expand=True, padx=6, pady=6)

        # Plot 2D
        plot2 = ttk.LabelFrame(right, text="Plot 2D: f(x)")
        plot2.pack(fill="x", pady=4)
        ttk.Label(plot2, text="f(x)=").grid(row=0,column=0, sticky="w")
        ttk.Entry(plot2, textvariable=self.plot_expr, width=40).grid(row=0,column=1,columnspan=3, sticky="w")
        ttk.Label(plot2, text="xmin").grid(row=1,column=0, sticky="w")
        self.xmin_var = tk.StringVar(value="-10"); ttk.Entry(plot2, textvariable=self.xmin_var, width=8).grid(row=1,column=1)
        ttk.Label(plot2, text="xmax").grid(row=1,column=2, sticky="w")
        self.xmax_var = tk.StringVar(value="10"); ttk.Entry(plot2, textvariable=self.xmax_var, width=8).grid(row=1,column=3)
        ttk.Label(plot2, text="samples").grid(row=2,column=0, sticky="w")
        self.samples_var = tk.IntVar(value=1000); ttk.Entry(plot2, textvariable=self.samples_var, width=8).grid(row=2,column=1)
        ttk.Button(plot2, text="Plot 2D", command=self.plot_2d).grid(row=3,column=0, pady=6)
        ttk.Button(plot2, text="Save PNG", command=self.save_plot).grid(row=3,column=1, pady=6)
        ttk.Button(plot2, text="Clear", command=self.clear_plot).grid(row=3,column=2, pady=6)

        # Plot 3D
        plot3 = ttk.LabelFrame(right, text="Plot 3D: z=f(x,y)")
        plot3.pack(fill="x", pady=4)
        ttk.Label(plot3, text="z=").grid(row=0,column=0, sticky="w")
        ttk.Entry(plot3, textvariable=self.plot3_expr, width=40).grid(row=0,column=1,columnspan=3, sticky="w")
        ttk.Label(plot3, text="xmin").grid(row=1,column=0, sticky="w")
        self.x3_min = tk.StringVar(value="-5"); ttk.Entry(plot3, textvariable=self.x3_min, width=8).grid(row=1,column=1)
        ttk.Label(plot3, text="xmax").grid(row=1,column=2, sticky="w")
        self.x3_max = tk.StringVar(value="5"); ttk.Entry(plot3, textvariable=self.x3_max, width=8).grid(row=1,column=3)
        ttk.Label(plot3, text="ymin").grid(row=2,column=0, sticky="w")
        self.y3_min = tk.StringVar(value="-5"); ttk.Entry(plot3, textvariable=self.y3_min, width=8).grid(row=2,column=1)
        ttk.Label(plot3, text="ymax").grid(row=2,column=2, sticky="w")
        self.y3_max = tk.StringVar(value="5"); ttk.Entry(plot3, textvariable=self.y3_max, width=8).grid(row=2,column=3)
        ttk.Label(plot3, text="samples (each axis)").grid(row=3,column=0, sticky="w")
        self.samples3_var = tk.IntVar(value=200); ttk.Entry(plot3, textvariable=self.samples3_var, width=8).grid(row=3,column=1)
        ttk.Button(plot3, text="Plot 3D", command=self.plot_3d).grid(row=4,column=0, pady=6)
        ttk.Button(plot3, text="Save PNG", command=self.save_plot).grid(row=4,column=1, pady=6)

        # Figure
        fig_frame = ttk.Frame(right); fig_frame.pack(fill="both", expand=True)
        self.fig = Figure(figsize=(6,5), dpi=110)
        self.ax = self.fig.add_subplot(111)  # will be replaced with 3D when needed
        self.canvas = FigureCanvasTkAgg(self.fig, master=fig_frame)
        self.canvas.get_tk_widget().pack(fill="both", expand=True)

        bottom = ttk.Frame(self); bottom.pack(side="bottom", fill="x", padx=8, pady=6)
        ttk.Label(bottom, text="برای توابع برداری از np.sin(x), np.cos(...) یا sin(...) استفاده کنید. برای 3D از متغیرهای x و y استفاده کنید.").pack(side="left")

    # buttons
    def on_button(self, text):
        if text == "C":
            self.expr_var.set("")
            return
        if text == "DEL":
            s = self.expr_var.get(); self.expr_var.set(s[:-1]); return
        if text == "ans":
            if self.history:
                last_ans = self.history[-1][1]
                self.expr_var.set(self.expr_var.get() + str(last_ans))
            return
        if text == "pi":
            self.expr_var.set(self.expr_var.get() + "pi"); return
        if text == "e":
            self.expr_var.set(self.expr_var.get() + "e"); return
        if text == "%":
            self.expr_var.set(self.expr_var.get() + "/100"); return
        self.expr_var.set(self.expr_var.get() + text)

    def clear_all(self):
        self.expr_var.set(""); self.result_var.set(""); self.history.clear(); self.hist_list.delete(0,tk.END); self.clear_plot()

    def on_history_select(self, event):
        sel = self.hist_list.curselection()
        if not sel: return
        idx = sel[0]; expr, val = self.history[idx]
        self.expr_var.set(expr); self.result_var.set(str(val))

    def evaluate(self):
        expr = self.expr_var.get().strip()
        if not expr: return
        try:
            val = safe_eval(expr)
            if isinstance(val, float) and abs(val - round(val)) < 1e-12:
                val = int(round(val))
            self.result_var.set(str(val))
            self.history.append((expr, val)); self.hist_list.insert(tk.END, f"{expr} = {val}")
        except Exception as e:
            messagebox.showerror("Evaluation error", f"{e}\n\n{traceback.format_exc()}")

    # plotting 2D
    def plot_2d(self):
        expr = self.plot_expr.get().strip()
        if not expr:
            messagebox.showwarning("Warning", "عبارت تابع خالی است."); return
        try:
            xmin = float(self.xmin_var.get()); xmax = float(self.xmax_var.get())
            if xmax <= xmin: raise ValueError("xmax باید بزرگتر از xmin باشد.")
            samples = int(self.samples_var.get()); samples = max(20, samples)
            x = np.linspace(xmin, xmax, samples)
            ef = expr.replace("^", "**")
            repl_map = ["sin","cos","tan","arcsin","arccos","arctan","sinh","cosh","tanh","exp","log","log10","sqrt","abs"]
            for fn in repl_map:
                ef = ef.replace(fn+"(", "np."+fn+"(")
            local_vars = {"x": x}
            try:
                y = safe_eval(ef, local_vars=local_vars)
                if np.isscalar(y): y = np.full_like(x, float(y), dtype=float)
                else: y = np.array(y, dtype=float)
            except Exception:
                y = []
                for xv in x:
                    try:
                        yv = safe_eval(expr, local_vars={"x": float(xv)}); y.append(float(yv))
                    except Exception:
                        y.append(np.nan)
                y = np.array(y, dtype=float)

            self.fig.clf()
            self.ax = self.fig.add_subplot(111)
            self.ax.plot(x, y, label=f"f(x)={expr}")
            self.ax.set_xlim(xmin, xmax); self.ax.grid(True); self.ax.legend()
            self.canvas.draw()
        except Exception as e:
            messagebox.showerror("Plot error", str(e))

    # plotting 3D
    def plot_3d(self):
        expr = self.plot3_expr.get().strip()
        if not expr:
            messagebox.showwarning("Warning", "عبارت تابع خالی است."); return
        try:
            xmin = float(self.x3_min.get()); xmax = float(self.x3_max.get())
            ymin = float(self.y3_min.get()); ymax = float(self.y3_max.get())
            if xmax <= xmin or ymax <= ymin:
                raise ValueError("حدود x و y نامعتبرند.")
            samples = int(self.samples3_var.get()); samples = max(10, min(500, samples))
            xs = np.linspace(xmin, xmax, samples)
            ys = np.linspace(ymin, ymax, samples)
            X, Y = np.meshgrid(xs, ys)
            # prepare expression for numpy evaluation: replace functions to np.*
            ef = expr.replace("^", "**")
            repl_map = ["sin","cos","tan","arcsin","arccos","arctan","sinh","cosh","tanh","exp","log","log10","sqrt","abs"]
            for fn in repl_map:
                ef = ef.replace(fn+"(", "np."+fn+"(")
            local_vars = {"x": X, "y": Y}
            try:
                Z = safe_eval(ef, local_vars=local_vars)
                Z = np.array(Z, dtype=float)
            except Exception:
                # fallback pointwise (slower)
                Z = np.empty_like(X, dtype=float)
                rows, cols = X.shape
                for i in range(rows):
                    for j in range(cols):
                        xv = float(X[i,j]); yv = float(Y[i,j])
                        try:
                            zv = safe_eval(expr, local_vars={"x": xv, "y": yv})
                            Z[i,j] = float(zv)
                        except Exception:
                            Z[i,j] = np.nan

            # plot surface
            self.fig.clf()
            self.ax = self.fig.add_subplot(111, projection='3d')
            # choose a colormap and plot_surface
            surf = self.ax.plot_surface(X, Y, Z, cmap='viridis', linewidth=0, antialiased=True)
            self.fig.colorbar(surf, ax=self.ax, shrink=0.6)
            self.ax.set_xlabel('x'); self.ax.set_ylabel('y'); self.ax.set_zlabel('z')
            self.ax.set_title(f"z = {expr}")
            self.canvas.draw()
        except Exception as e:
            messagebox.showerror("3D Plot error", f"{e}\n\n{traceback.format_exc()}")

    def save_plot(self):
        path = filedialog.asksaveasfilename(defaultextension=".png", filetypes=[("PNG","*.png")])
        if not path: return
        try:
            self.fig.savefig(path)
            messagebox.showinfo("Saved", f"Saved plot to {path}")
        except Exception as e:
            messagebox.showerror("Save error", str(e))

    def clear_plot(self):
        self.fig.clf()
        self.ax = self.fig.add_subplot(111)
        self.ax.set_title("Plot"); self.ax.grid(True)
        self.canvas.draw()

if __name__ == "__main__":
    app = ScientificCalculator3D()
    app.mainloop()
